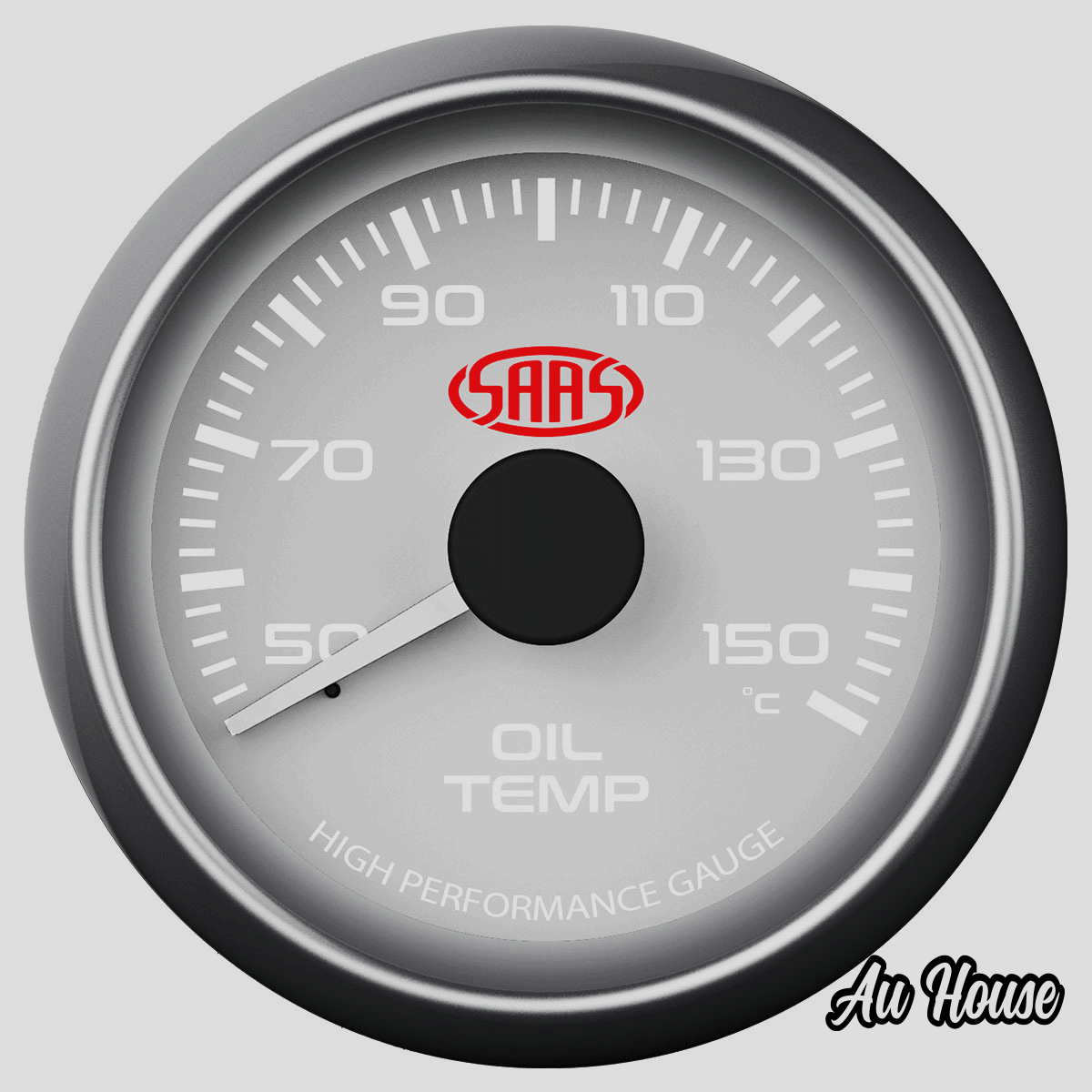

OIL TEMP GAUGE 50°-150° 52MM WHITE MUSCLE SERIES

FEATURES:

• 50°-150° Temperature Range
• LED lighting with 4 colour options
• Micro switch for backlight changes
• Replacement spares available (see below)

WHAT'S INCLUDED :

• Oil Temp Gauge
• Oil Temperature Sender
• SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
• Wiring Loom
• Mounting Bracket and fittings

FITMENT NOTES:

The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. If that's already being used for an oil pressure gauge, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories.

Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
